Star Prism Box v1

DesignedMay 2020

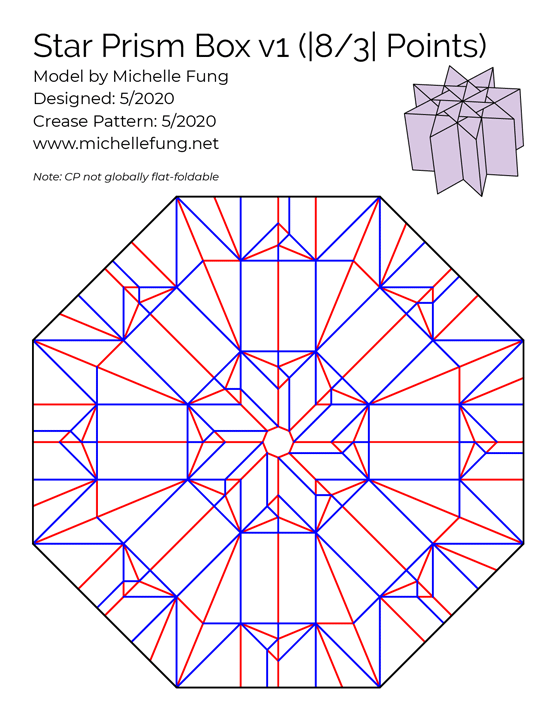

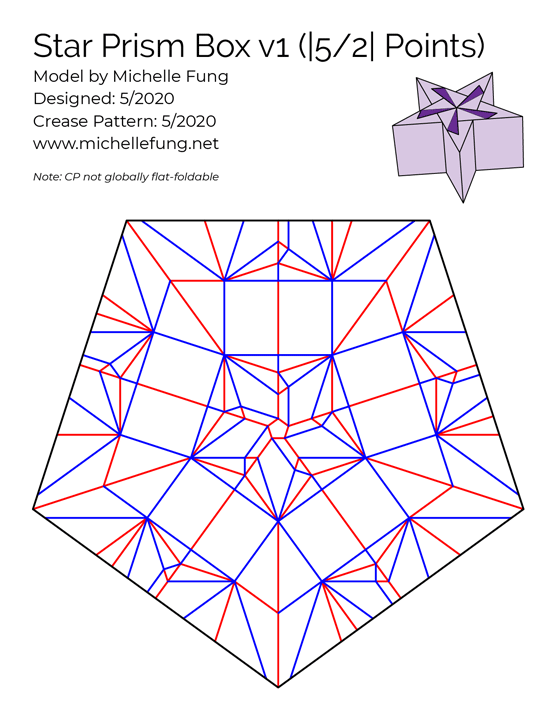

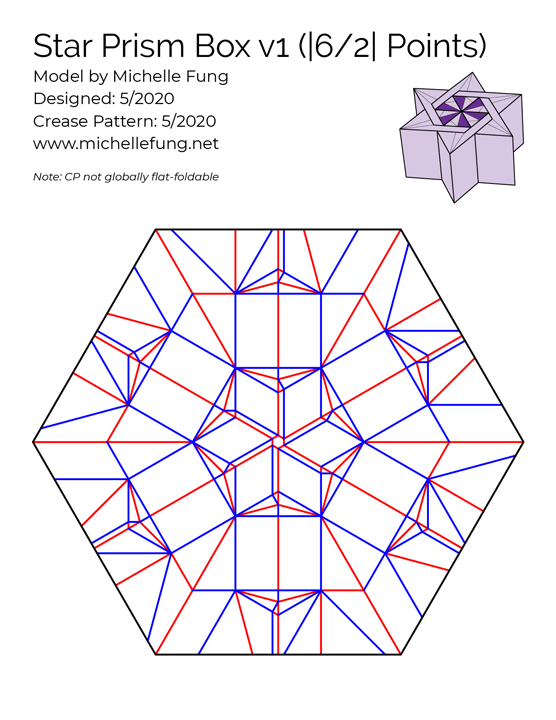

Crease PatternYes
DiagramsNo

The notation is | (number of points in the star) / (spacing between connected points) |.

After I designed a star prism model, I found that the previous method didn't work well for a regular 5-pointed star. Realigning the sides and layers allows these closed prism shapes, but since the end flaps are longer, they are twisted externally instead of tucked inside. Additionally, while the internal layers cut off the storage space in the points of the star prism model (reducing usefulness as a box), the internal layers are aligned to the sides in the star prism box model.

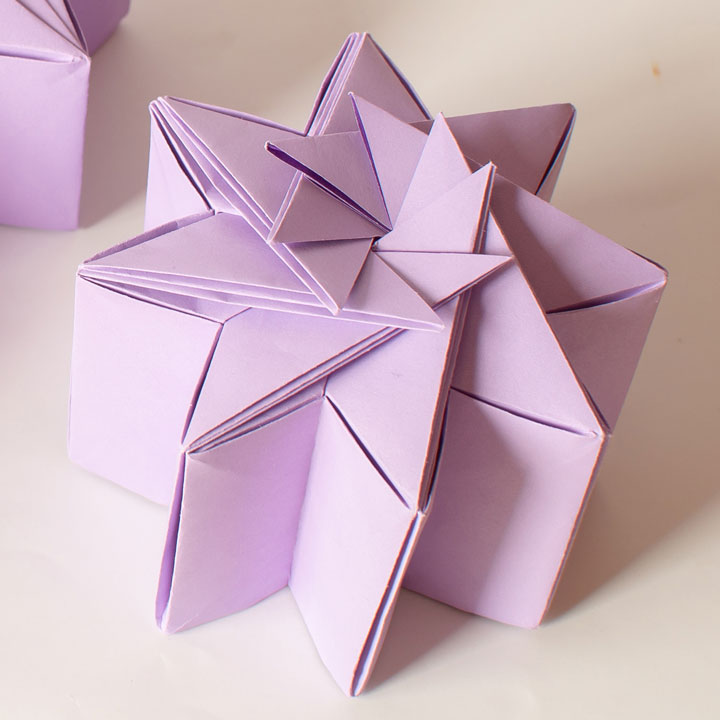

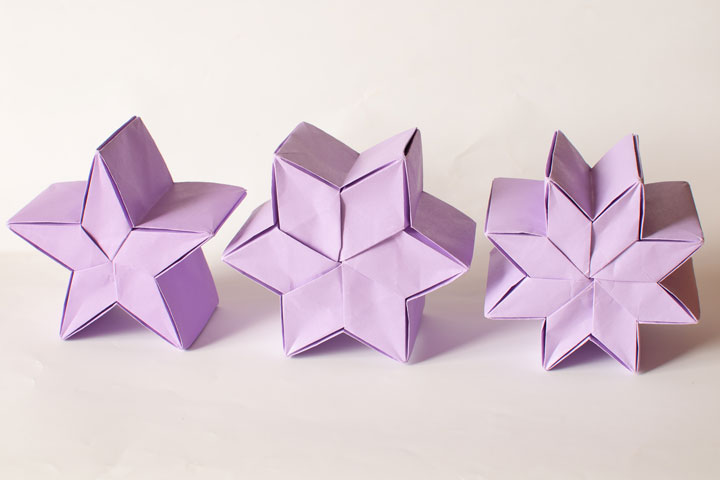

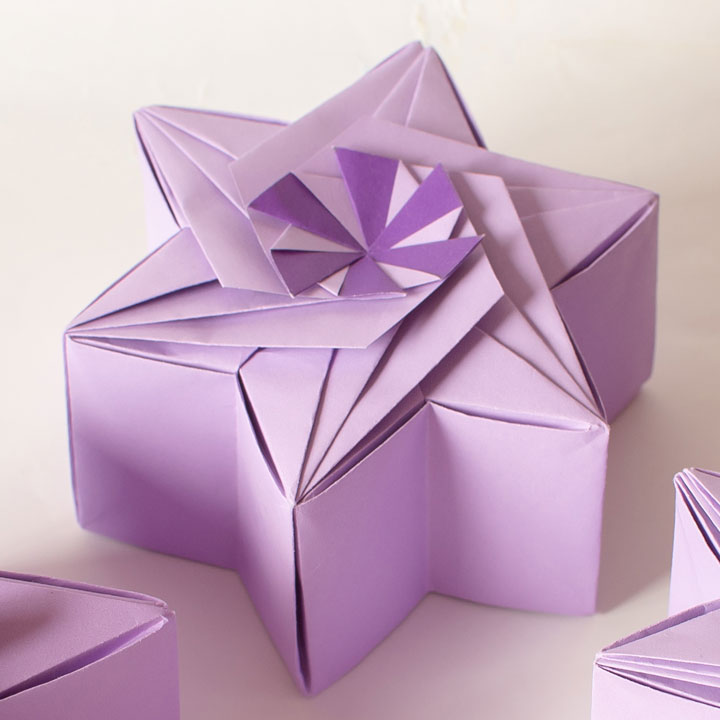

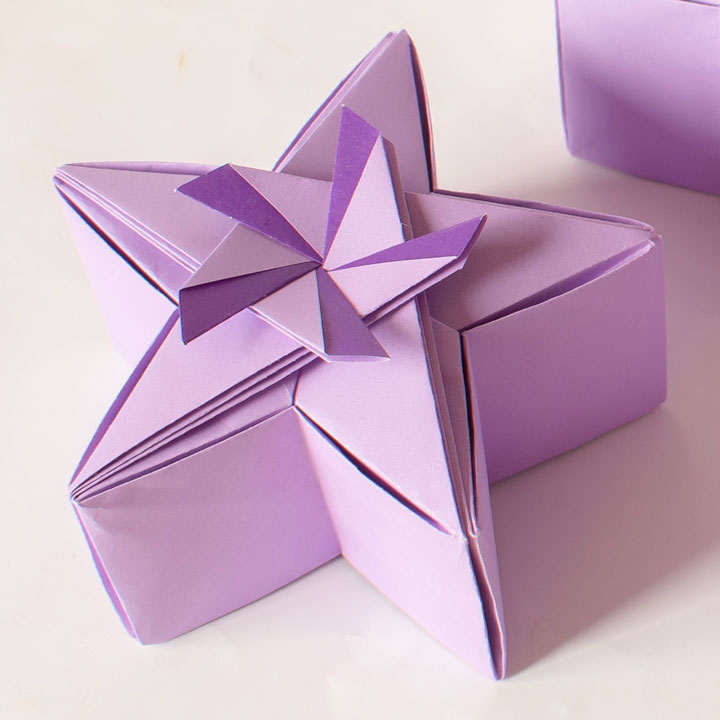

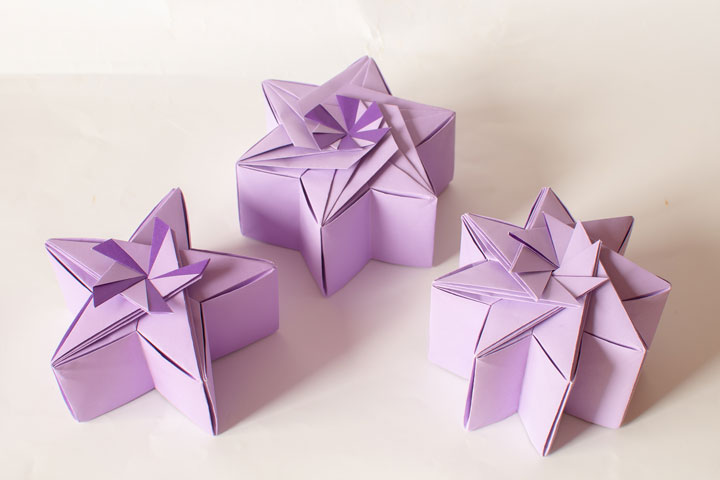

I tried three different variations: |5/2|, |6/2|, and |8/3|.

More variations with different point count and spacing are possible. The twist fold pleats do become narrower as the point count increases or the point spacing decreases. The ones I tried have fewer points, and are thus quicker to fold. When folding this model avoid unnecessary creases as much as possible - especially on the bottom, since extraneous creases weaken the rigidity of the box. A clean twist fold collapse is also ideal.

Since these models are so geometric, I wouldn't be surprised if someone else has designed something similar already, but I couldn't find any one piece, fully closed origami star prism or star prism box models from searching online.
